Description

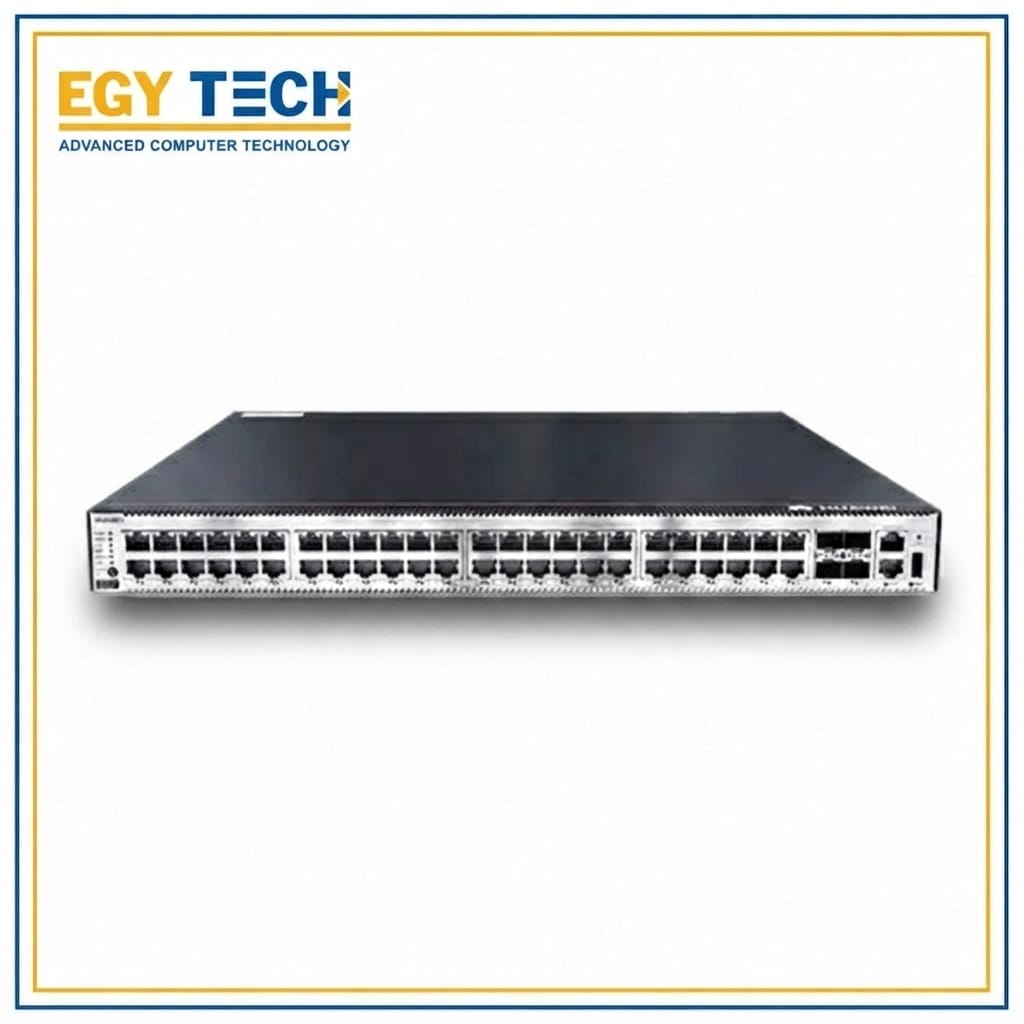

The Huawei CloudEngine S5731-S48P4X is an enterprise-grade Layer 3 managed Gigabit PoE+ switch designed for medium and large enterprise networks, campus environments, hotels, hospitals, educational institutions, and IP surveillance systems. It features 48 Gigabit PoE+ Ethernet ports and 4 × 10GE SFP+ uplink ports, providing high-speed connectivity and flexible network expansion for modern business applications.
Powered by Huawei’s Versatile Routing Platform (VRP), the S5731-S48P4X supports advanced Layer 2 and Layer 3 services including static routing, IPv4/IPv6, VLAN, ACL, QoS, multicast, and Huawei iStack technology for switch virtualization and simplified management. It also supports dual hot-swappable power supplies for 1+1 redundancy and intelligent fan speed adjustment to ensure maximum reliability and business continuity.
With PoE+ support, the switch can power IP phones, wireless access points, IP cameras, and other IEEE 802.3af/at compliant devices through Ethernet cables, reducing deployment costs while simplifying installation. It is an ideal solution for scalable, secure, and high-performance enterprise networks.
Specifications
Feature Specification
Model Huawei CloudEngine S5731-S48P4X
Switch Type Layer 3 Managed PoE+ Switch
Fixed Ports 48 × 10/100/1000Base-T PoE+ RJ45
Uplink Ports 4 × 10GE SFP+
PoE Standard IEEE 802.3af / IEEE 802.3at (PoE+)
PoE Support Yes
Switching Capacity 176 Gbps / 672 Gbps
Forwarding Rate 125 Mpps
MAC Address Table 32K Entries
Layer 3 Features Static Routing, IPv4, IPv6
VLAN Support Up to 4K VLANs
QoS Supported
ACL Supported
Link Aggregation LACP
STP STP, RSTP, MSTP
Multicast IGMP Snooping, MLD Snooping
DHCP Features DHCP Snooping, DHCP Relay
Stacking Huawei iStack
Security 802.1X, Port Security, MAC Authentication, ACL
Management CLI, Web GUI, SNMP, SSH, NETCONF
Power Supply Dual Hot-swappable Power Modules (1+1 Redundancy)
Cooling Intelligent Fan Speed Adjustment
Mounting 1U Rack Mount
Dimensions 43.6 × 442 × 420 mm
Typical Applications Enterprise LAN, Campus Networks, CCTV, Wi-Fi, VoIP, Data Aggregation
