Description

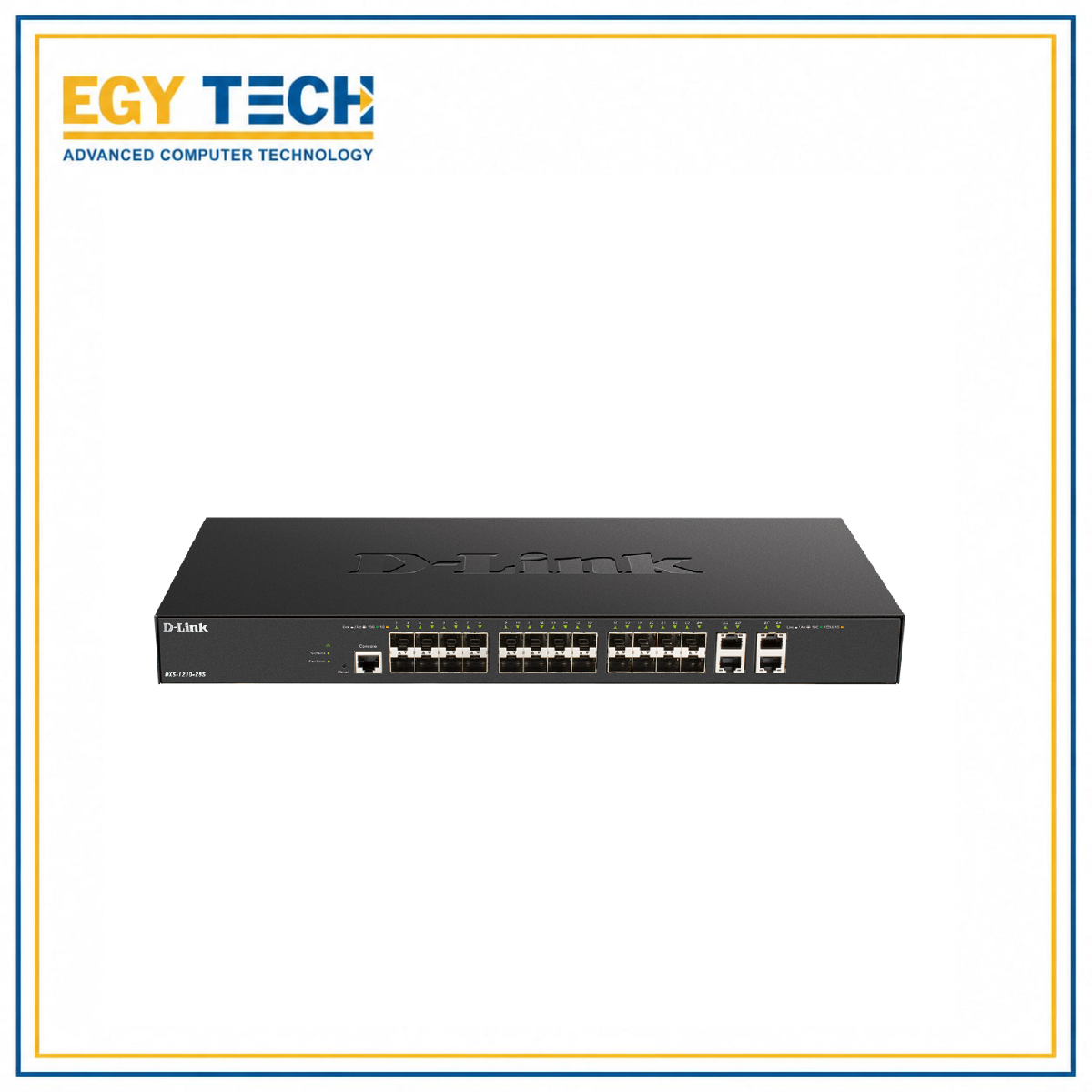

The D-Link DXS-1210-28S 24 Port 10G SFP+ 4 Port 10G Copper Smart Managed Switch is an enterprise-class Layer 2+ Smart Managed Switch engineered for organizations requiring high-speed fiber connectivity, advanced traffic management, and scalable network infrastructure. Designed for aggregation, server connectivity, virtualization, and enterprise core networks, it combines high-density 10 Gigabit fiber interfaces with flexible copper connectivity in a compact 1U rackmount form factor.
Equipped with 24 1G/10G SFP+ ports and 4 dedicated 10GBASE-T copper ports, the D-Link DXS-1210-28S 24 Port 10G SFP+ 4 Port 10G Copper Smart Managed Switch offers exceptional flexibility for connecting servers, storage systems, aggregation switches, and high-performance workstations. It supports both Gigabit and 10 Gigabit fiber deployments, making it suitable for growing enterprise networks and modern data center environments.
The switch delivers an impressive 560 Gbps switching capacity with a forwarding rate of 416.64 Mpps, ensuring wire-speed packet forwarding even under heavy workloads. A 32K MAC address table, jumbo frame support, link aggregation, QoS, multicast optimization, and comprehensive VLAN capabilities provide excellent performance for bandwidth-intensive applications including virtualization, VoIP, cloud services, surveillance, and multimedia streaming.
As a Layer 2+ Smart Managed Switch, the D-Link DXS-1210-28S 24 Port 10G SFP+ 4 Port 10G Copper Smart Managed Switch supports static IPv4 and IPv6 routing, advanced security policies, Access Control Lists (ACLs), 802.1X authentication, DHCP server screening, IP-MAC-Port Binding, Auto Voice VLAN, Auto Surveillance VLAN, ERPS, MSTP, and comprehensive network monitoring through SNMP, RMON, and LLDP. These features simplify network administration while enhancing reliability and security.
Designed for continuous operation, the switch incorporates dual smart cooling fans, Energy Efficient Ethernet (IEEE 802.3az), cable diagnostics, and a durable metal chassis. Whether deployed in enterprise campuses, server rooms, ISP networks, or high-performance business environments, the D-Link DXS-1210-28S 24 Port 10G SFP+ 4 Port 10G Copper Smart Managed Switch delivers the performance, flexibility, and management capabilities required for next-generation networking.
Key Features
24 × 1G/10G SFP+ fiber ports
4 × 10GBASE-T copper ports
Layer 2+ Smart Managed Switch
560 Gbps switching capacity
416.64 Mpps forwarding rate
Static IPv4 & IPv6 routing
32K MAC address table
IEEE 802.3az Energy Efficient Ethernet
Auto Voice VLAN
Auto Surveillance VLAN
Link Aggregation (802.1AX / 802.3ad)
ACL security
802.1X Port Authentication
ERPS ring protection
SNMP & RMON management
Dual smart cooling fans
Technical Specifications
Specification Details
Manufacturer D-Link
Model DXS-1210-28S
Product Type Layer 2+ Smart Managed Switch
SFP+ Ports 24 × 1G/10G SFP+
Copper Ports 4 × 10GBASE-T RJ45
Switching Capacity 560 Gbps
Forwarding Rate 416.64 Mpps
MAC Address Table 32,000 Entries
Layer Support Layer 2+
Routing Static IPv4 & IPv6
VLANs Up to 4K VLANs
Link Aggregation IEEE 802.1AX / 802.3ad
QoS Queues 8 per Port
Jumbo Frames Supported
Security ACL, 802.1X, DHCP Screening, IP-MAC-Port Binding
Management Web GUI, CLI, SNMP, RMON
Console Port RJ-45
Cooling 2 Smart Fans
Power Input 100–240V AC
Maximum Power Consumption 87.7W (100V), 85.7W (240V)
Form Factor 1U Rackmount
Specifications are based on the official D-Link datasheet.
Applications
Enterprise core networks
Data centers
Server aggregation
Fiber backbone deployments
Campus networking
Virtualization infrastructure
Storage networking
ISP edge networks
High-performance business networks
Surveillance backbone
Why Choose This Product?
The D-Link DXS-1210-28S is purpose-built for organizations that require high-density 10 Gigabit networking with advanced management capabilities. Its combination of 24 SFP+ fiber ports, 4 copper 10G ports, 560 Gbps switching capacity, Layer 2+ routing, enterprise-grade security, and comprehensive management tools makes it an ideal choice for demanding enterprise, campus, and data center environments.
Product Comparison
Feature DXS-1210-28S DXS-1210-28T
10G SFP+ Ports 24 no
10G RJ45 Ports 4 24
25G SFP28 Uplink no 4
Switching Capacity 560 Gbps 680 Gbps
Forwarding Rate 416.64 Mpps 505.92 Mpps
Layer Layer 2+ Layer 2+
Best For Fiber Backbone & Data Centers Copper 10G Enterprise Networks
Frequently Asked Questions
1. Is the DXS-1210-28S a Layer 3 switch?
No. It is a Layer 2+ Smart Managed Switch with static IPv4 and IPv6 routing.
2. How many 10G fiber ports does it have?
It provides 24 1G/10G SFP+ ports.
3. Does it include copper 10G ports?
Yes. It includes 4 dedicated 10GBASE-T RJ45 ports.
4. What is the switching capacity?
The switch offers a 560 Gbps switching capacity.
5. Does it support IPv6?
Yes. It supports both IPv4 and IPv6 networking.
6. Can it be rack mounted?
Yes. It is designed as a 1U rackmount switch.
7. Does it support VLANs?
Yes. It supports up to 4K VLANs, including Voice VLAN and Surveillance VLAN.
8. Is it suitable for data centers?
Yes. Its high-density 10G interfaces and enterprise management features make it well suited for data centers, aggregation, and enterprise backbone deployments.
Why Buy from Digital Dreams?
Digital Dreams supplies genuine D-Link enterprise networking solutions with competitive pricing, expert technical support, and fast delivery across Egypt. Whether you’re deploying a data center, upgrading your campus backbone, or expanding your enterprise infrastructure, we provide authentic products backed by dependable after-sales service.
Conclusion
The D-Link DXS-1210-28S 24 Port 10G SFP+ 4 Port 10G Copper Smart Managed Switch delivers enterprise-grade 10 Gigabit performance, high-density fiber connectivity, advanced Layer 2+ management, and comprehensive security. With a 560 Gbps switching capacity, 24 SFP+ ports, 4 copper 10G ports, and advanced management capabilities, it is an excellent solution for enterprise networks, campus backbones, and modern data centers.
