Description

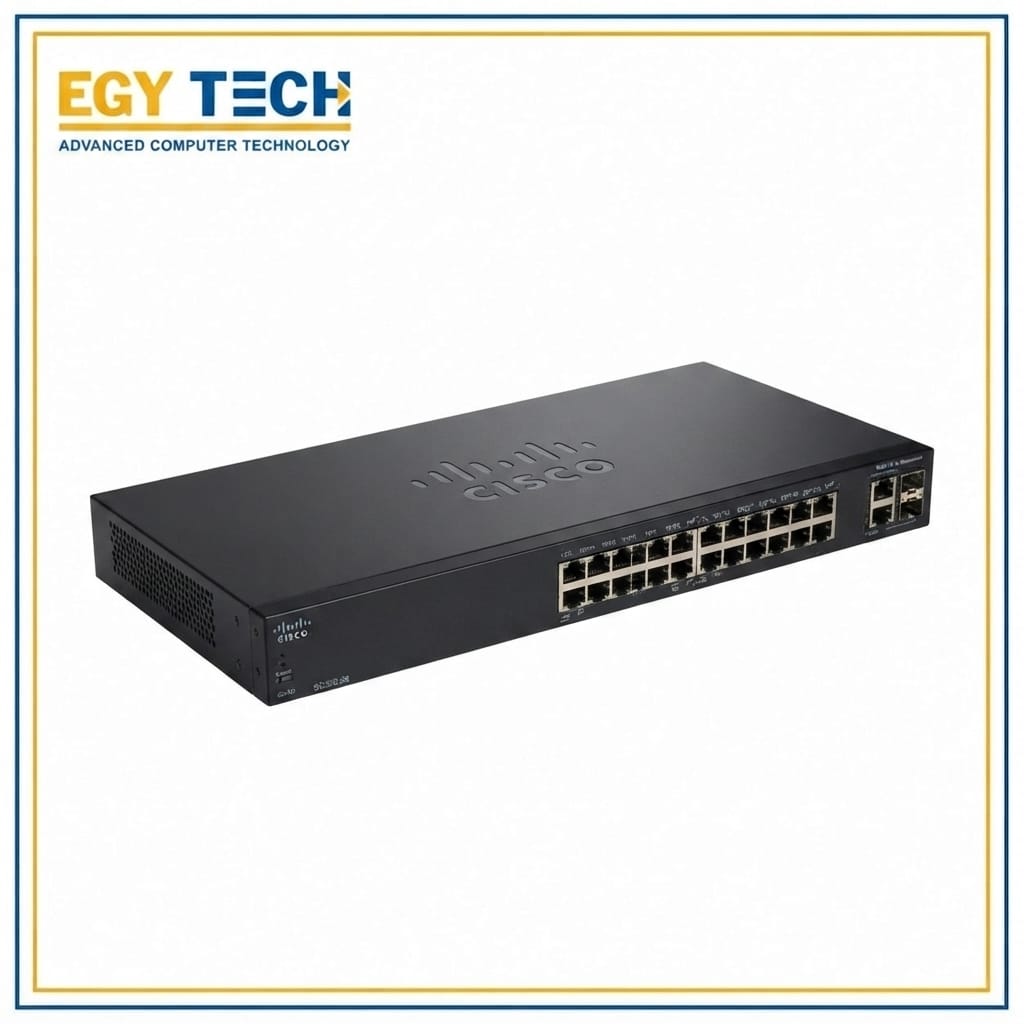

The Cisco SG550X-24-K9-EU Cisco 550X Series Stackable Managed Switch is a high-performance Layer 3 switch built for small and medium-sized businesses, enterprise branch offices, and campus networks. It offers 24 Gigabit Ethernet ports together with four dedicated 10 Gigabit uplink interfaces (2× 10GBase-T/SFP+ combo and 2× SFP+) to provide fast backbone connectivity and seamless network expansion.
With a 128 Gbps switching capacity and 95.23 Mpps forwarding rate, the SG550X delivers wire-speed performance for bandwidth-intensive applications. Advanced Layer 3 capabilities include static IPv4/IPv6 routing, RIP, Policy-Based Routing (PBR), VRRP, VLANs, QoS, ACLs, and comprehensive multicast support, making it suitable for complex enterprise environments.
The switch supports physical stacking of up to eight units, allowing multiple switches to operate as a single logical device for simplified management, increased scalability, and redundancy. Integrated security features such as IEEE 802.1X authentication, DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard help protect the network from unauthorized access and attacks. Management is available through an intuitive web interface, CLI, SNMP, SSH, and HTTPS, providing flexible administration for IT professionals.
Specification Details
Model SG550X-24-K9-EU
Brand Cisco
Product Series Cisco 550X Series
Product Type Layer 3 Stackable Managed Switch
Total Ports 24 × 10/100/1000 Gigabit RJ45
Uplink Ports 2 × 10GBase-T/SFP+ Combo + 2 × 10G SFP+
Total 10G Ports 4 × 10 Gigabit Uplinks
PoE Support No
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 16,000 Entries
Jumbo Frame Support Up to 9 KB
Layer Support Layer 2 & Layer 3
Routing Features Static IPv4/IPv6 Routing, RIP, Policy-Based Routing (PBR), VRRP
VLAN Support Up to 4,094 VLANs
Link Aggregation IEEE 802.3ad LACP (Up to 32 Groups)
Stacking Physical Stacking up to 8 Switches
Security Features ACLs, 802.1X Authentication, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard
QoS 8 Hardware Queues, DSCP & 802.1p Priority
Management Web GUI, CLI, SNMP v1/v2c/v3, SSH, HTTPS, RMON
Console Port RJ45 Console
USB Port 1 × USB Type-A
Memory 512 MB RAM
Flash Memory 256 MB
Mounting 1U Rack Mount
Power Supply Internal AC Power Supply
Dimensions 440 × 257 × 44 mm
Weight Approx. 3.27 kg
Operating Temperature 0°C to 50°C
Standards IEEE 802.3, 802.3ab, 802.3ae, 802.1Q, 802.1p, 802.1X
Show More
Additional information
Access Ports
24
Access Ports Speed
1 G (RJ-45)
Forwarding Rate (Throughput)
95.23 Mpps
Management Platform
Cisco Business Dashboard, Command line interface (CLI)
POE
Not Support POE
Switch Layer
Layer 3
Switching Capacity
128 Gbps
Mounting Options
Rack Mount
Uplink Ports
4
UpLinks Speed
10G
