Description

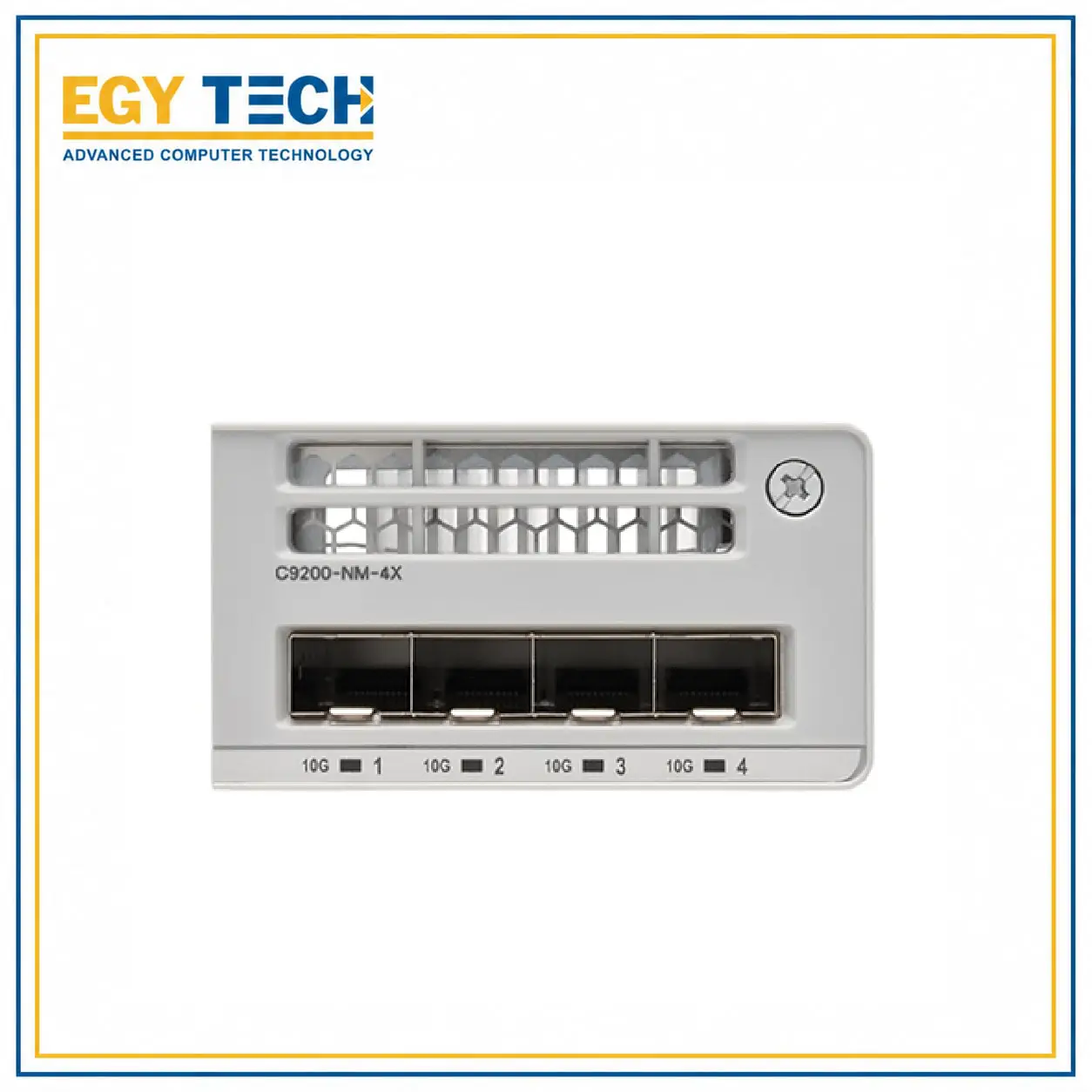

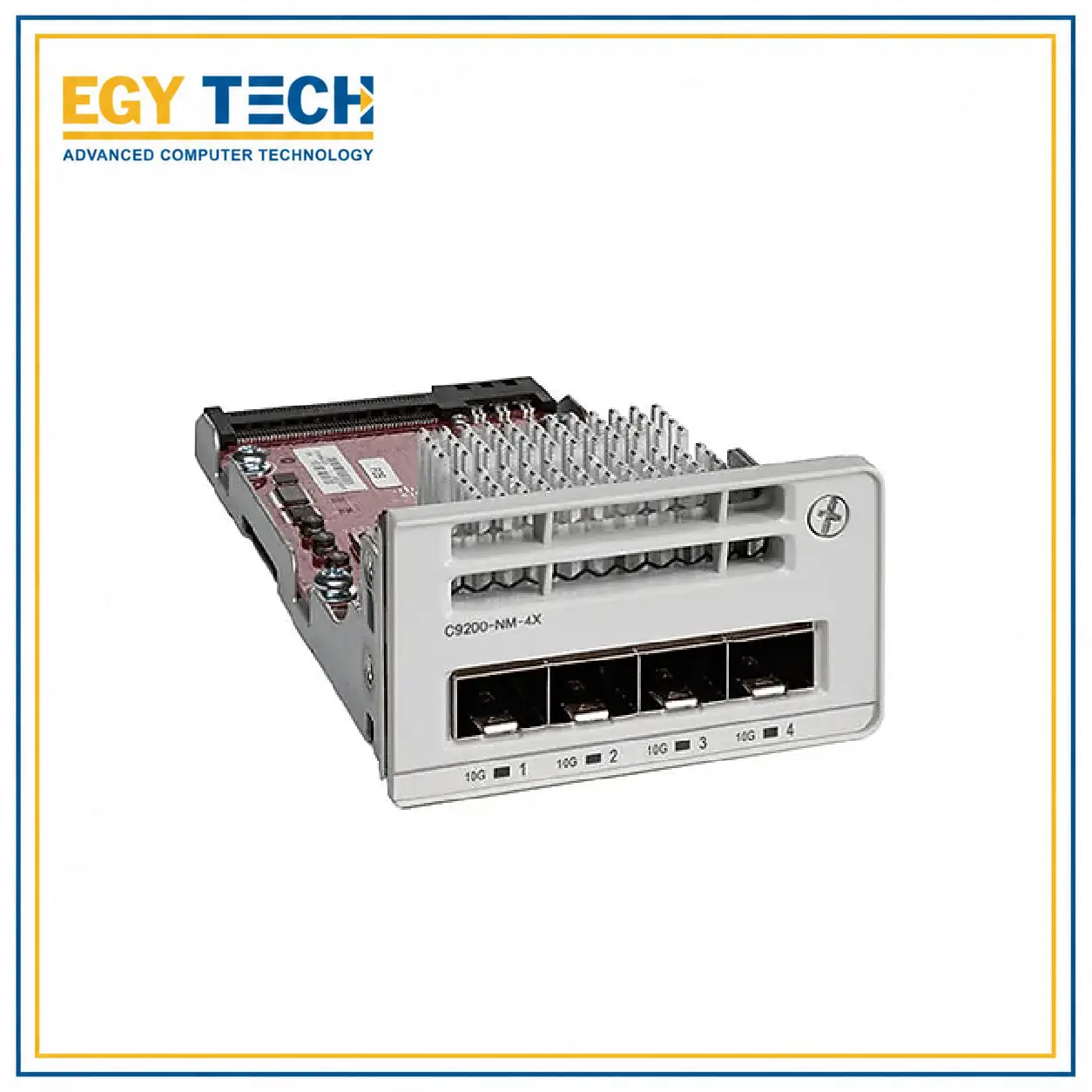

The Cisco C9200-NM-4X is a hot-swappable network uplink expansion module that adds four 10-Gigabit Ethernet SFP+ ports to modular Catalyst 9200 series switches. It provides flexible, high-speed fiber or copper connectivity to aggregate data traffic and link switches to core networks or servers.
The Cisco C9200-NM-4X network uplink module is specifically designed for and compatible with modular Cisco Catalyst 9200 Series switches.
Compatible Switch Models
According to technical compatibility documentation from ETB Technologies, the module fits into the expansion slots of the following modular Cisco Catalyst 9200 models
24-Port Models: C9200-24T, C9200-24P, C9200-24PB, and C9200-24PXG
48-Port Models: C9200-48T, C9200-48P, C9200-48PL, C9200-48PB, and C9200-48PXG
The Cisco C9200-NM-4X module supports various 10G SFP+ and 1G SFP transceivers, copper cables, and exact manufacturer part numbers needed for deployment.
Supported Transceivers & Cables
According to the Cisco Optics Compatibility Matrix, you can plug in the following options:

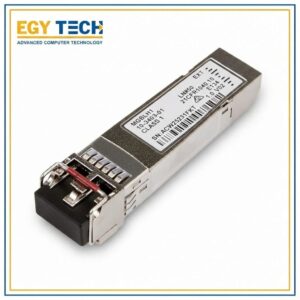

10G Fiber Transceivers: SFP-10G-SR (Short Range Multimode) and SFP-10G-LR (Long Range Single Mode).
1G Fiber Transceivers: GLC-SX-MMD (Multimode) and GLC-LH-SMD (Single Mode).
Direct Connect Cables: 10G SFP+ Direct Attach Copper (DAC) twinax cables (e.g., SFP-H10GB-CU1M, CU3M).
RJ-45 Copper Transceiver: SFP-10G-T-X (supports up to 10Gbps over standard Ethernet patch cords).
